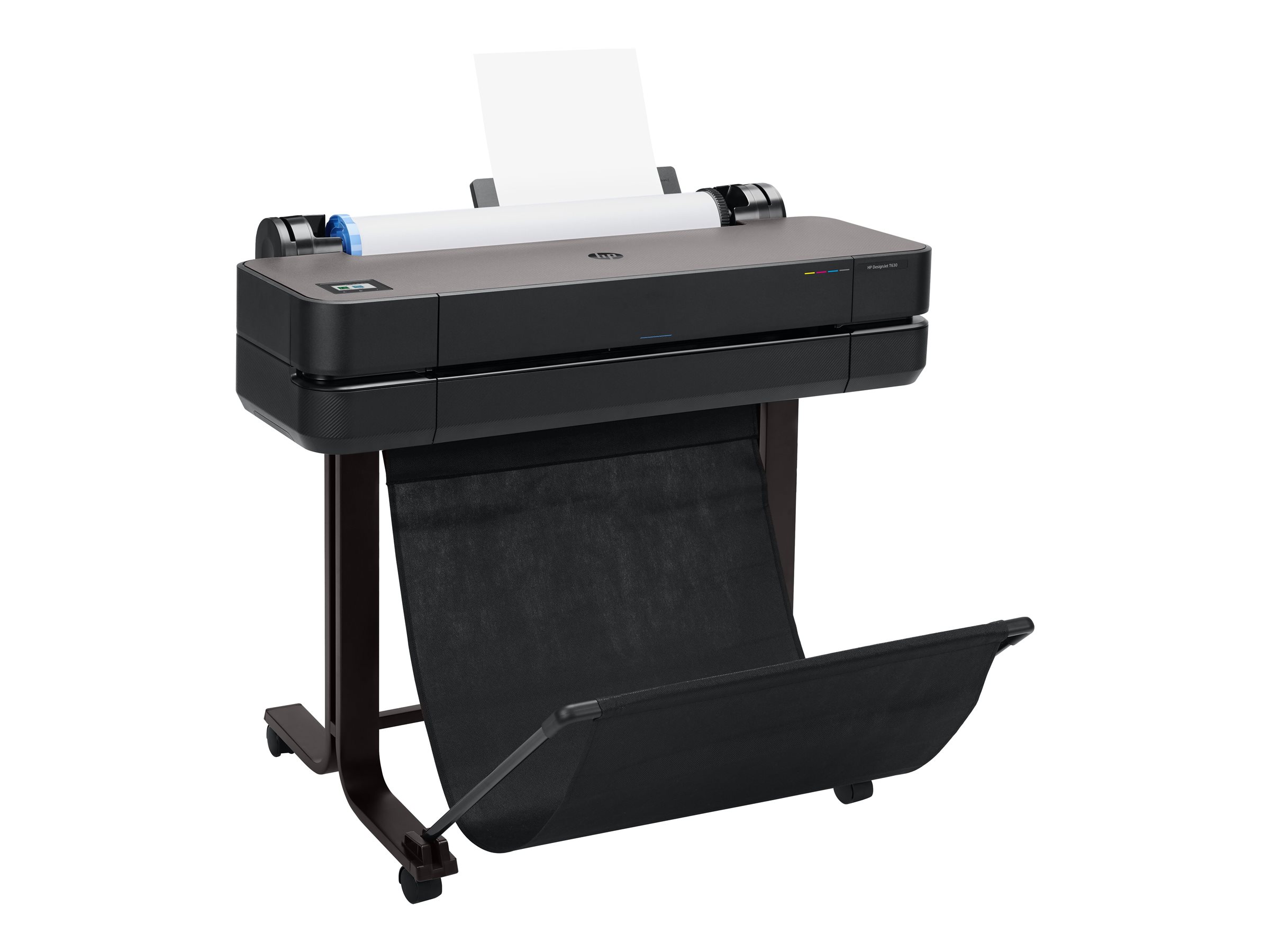

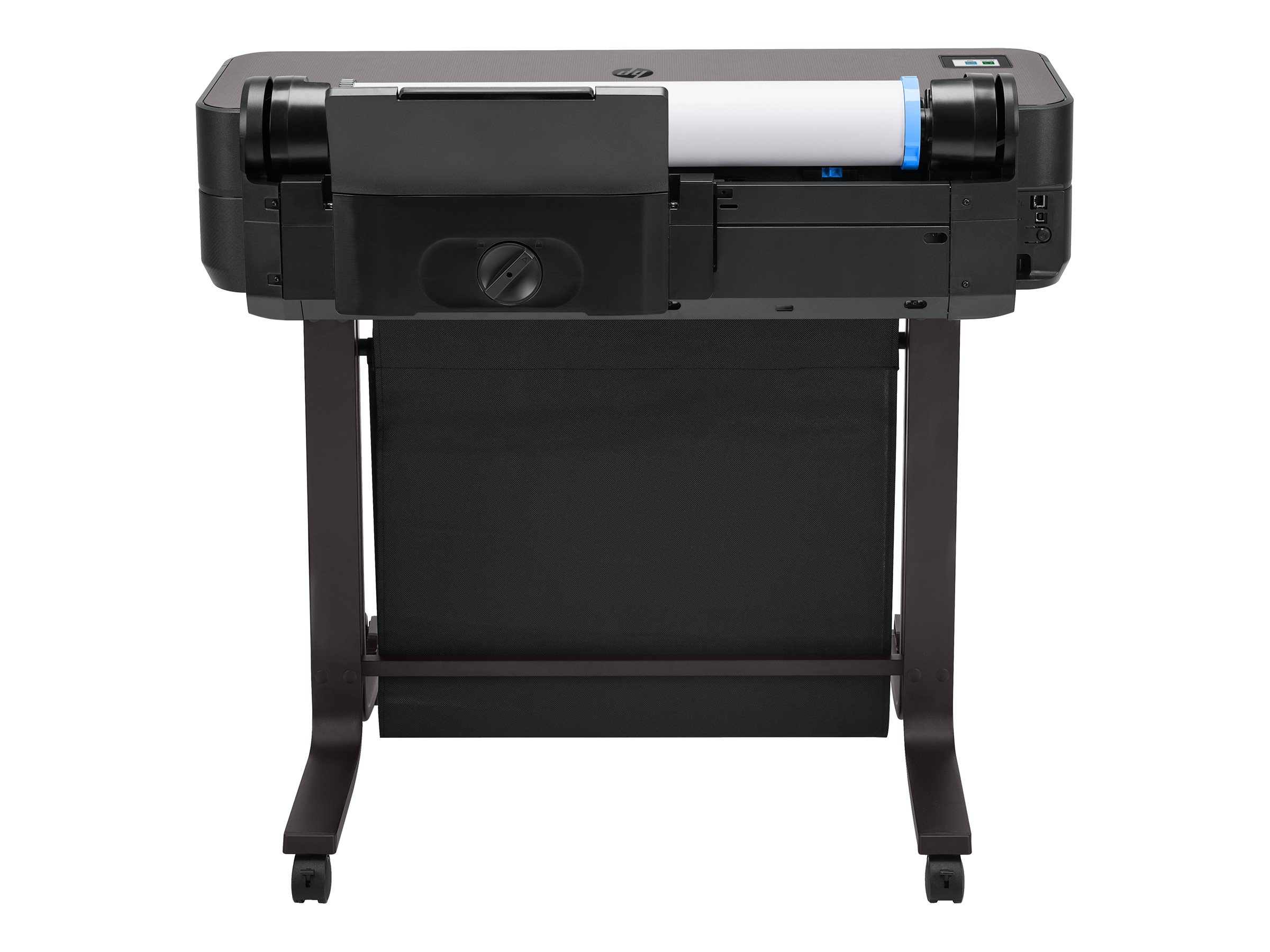

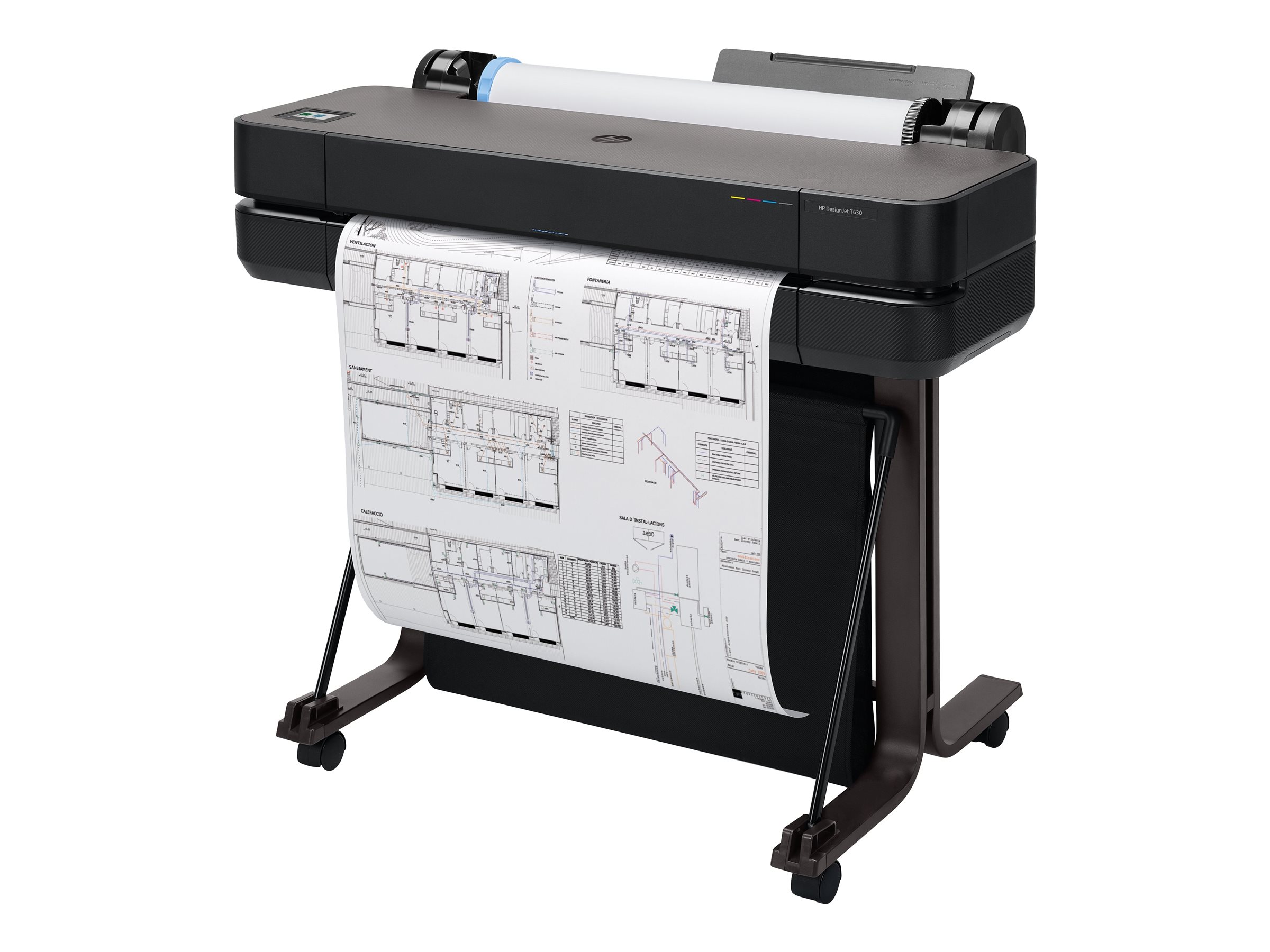

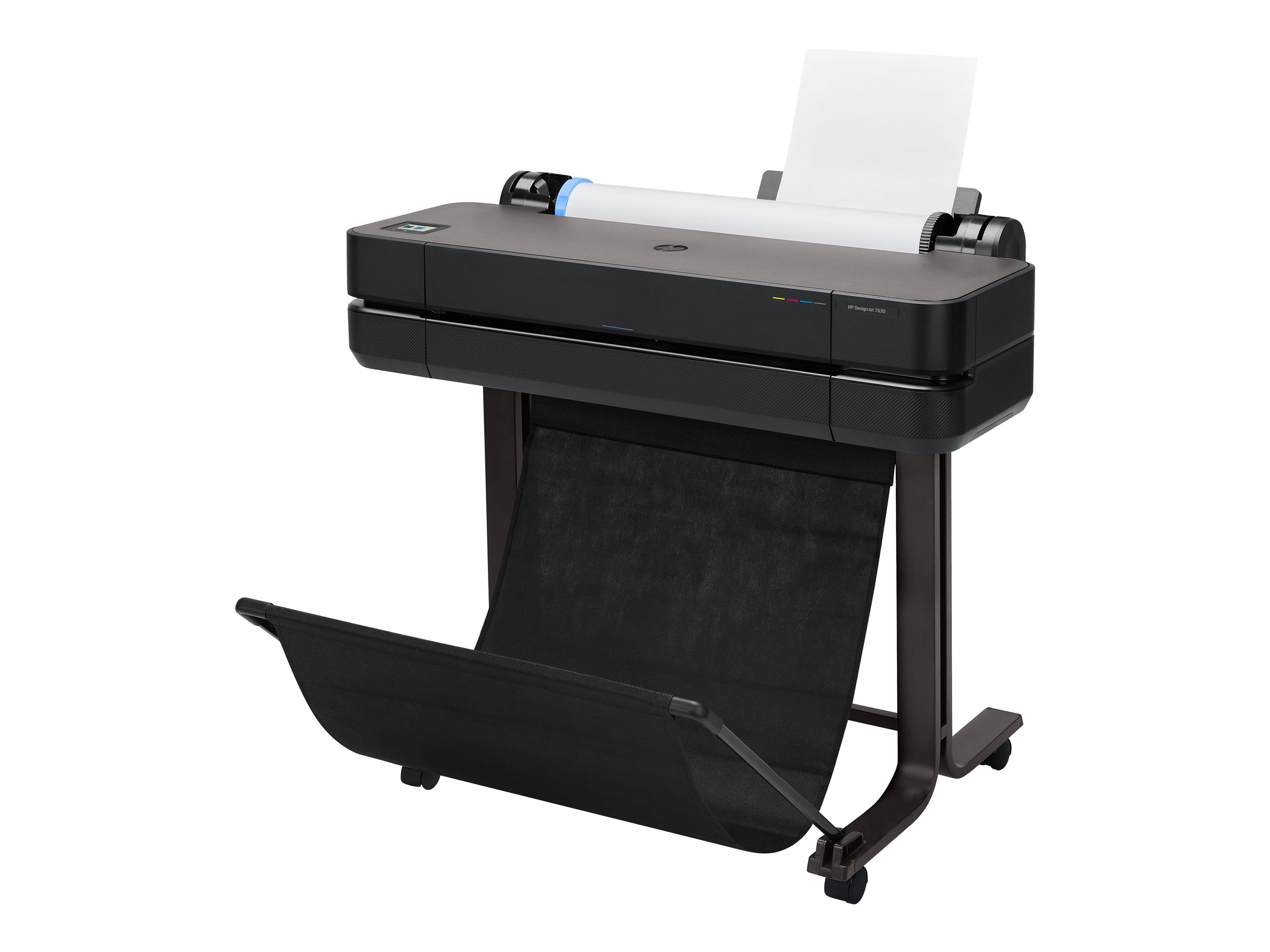

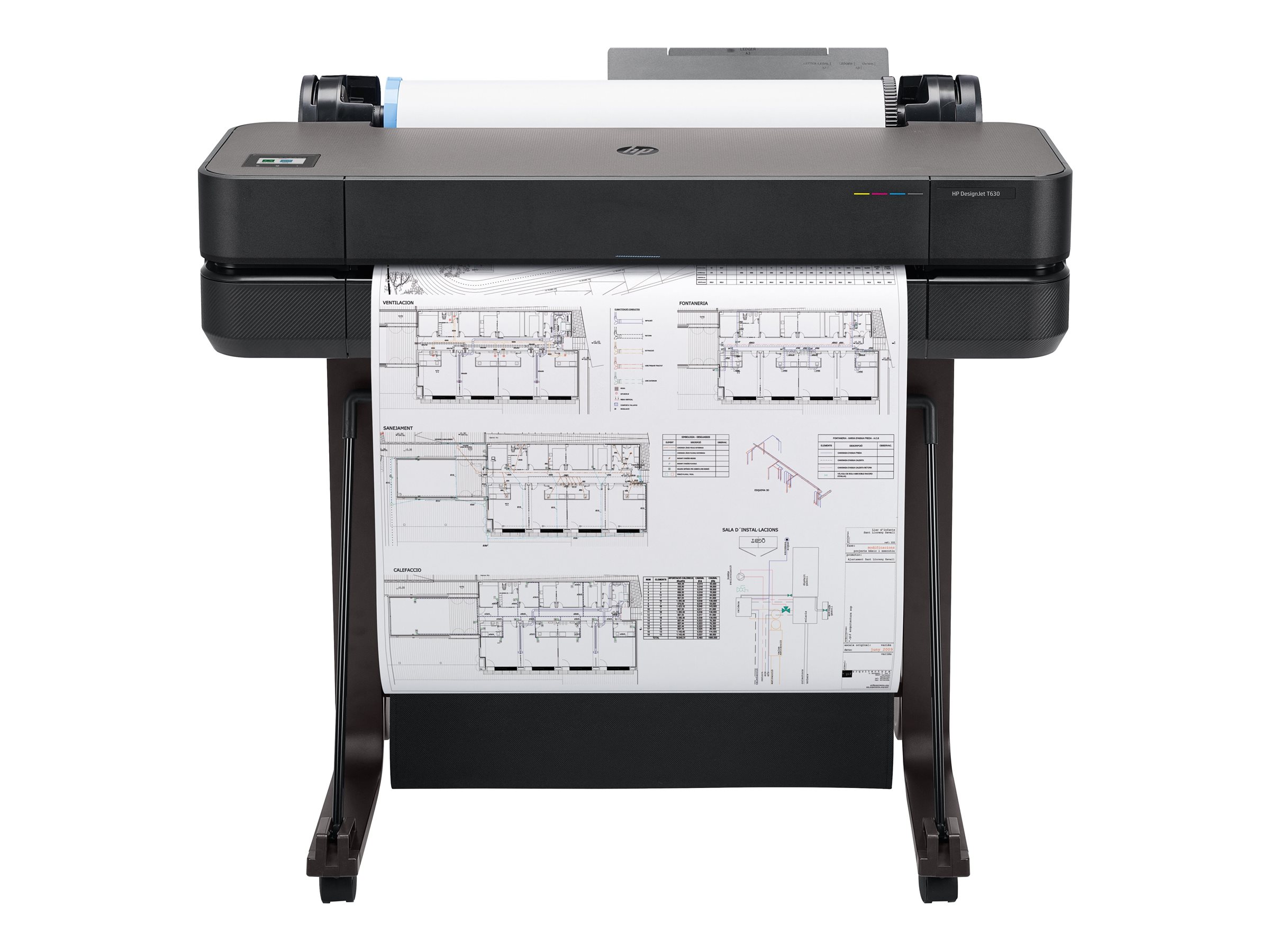

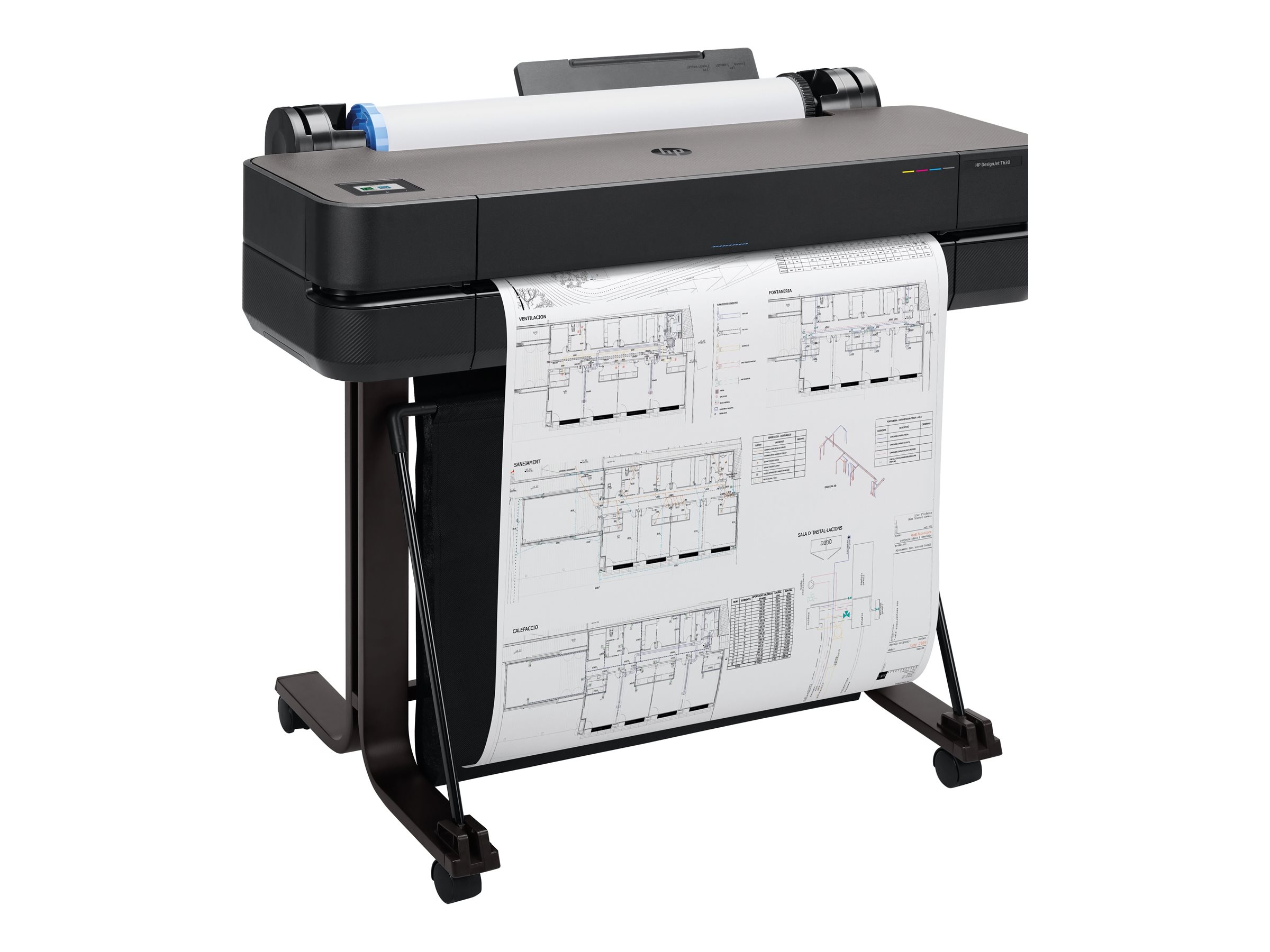

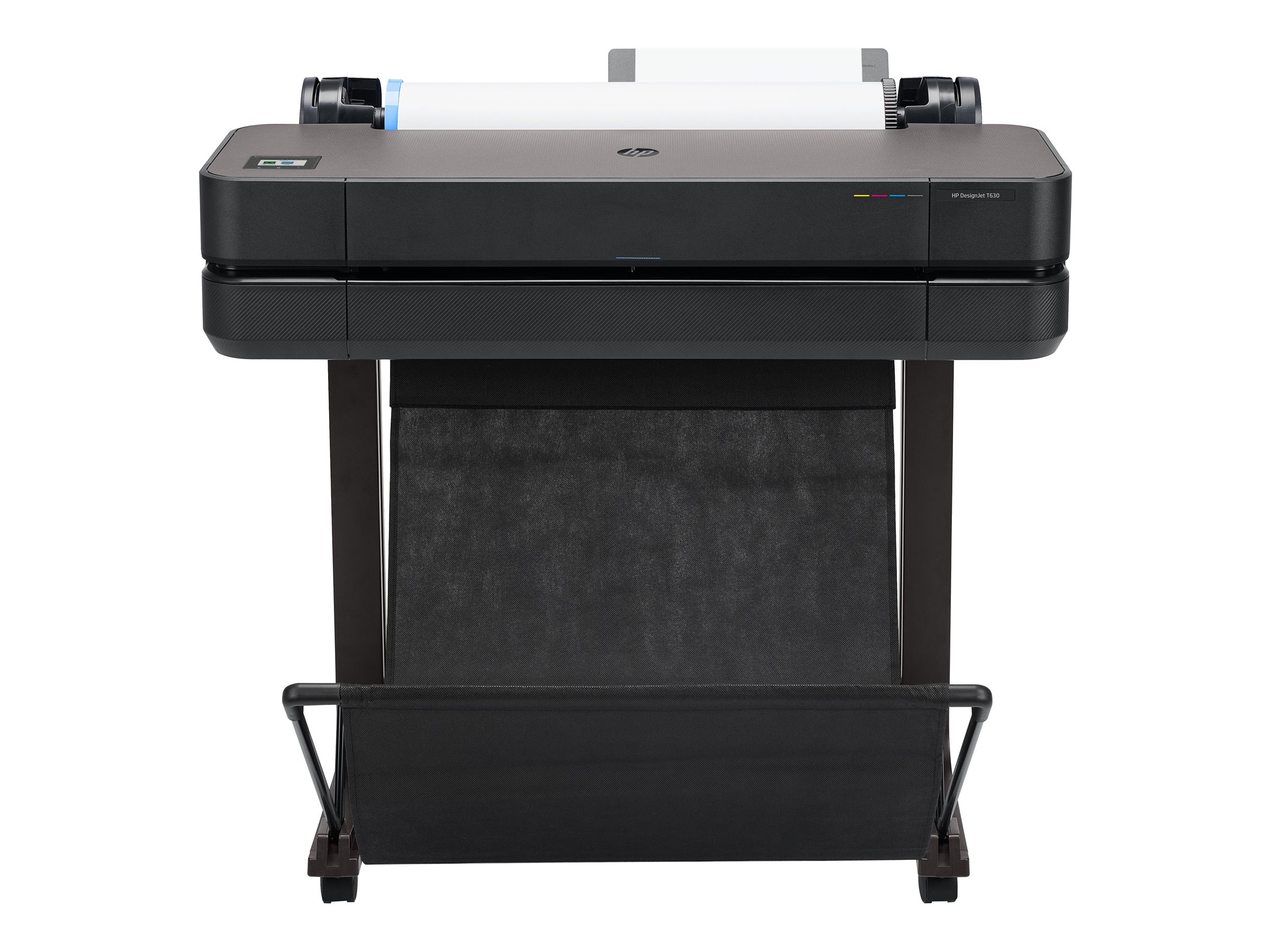

HP Inc. - HP DesignJet T630
2025 Edition - 24" large-format printer - color - ink-jet - , A1, ANSI D - 2400 x 1200 dpi - up to 0.5 min/page - USB 2.0, Gigabit LAN, Wi-Fi(n) - cutter
HP Inc.
5HB09D#B1K
N/A
0198701026815
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HP DesignJet T630 - 2025 Edition - large-format printer - color - ink-jet |
| Printer Type | 24" large-format printer - ink-jet - color |
| Weight | 63.71 lbs |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
| Max Media Size | Roll A1 (24 in x 150 ft), A1 (23.4 in x 33.1 in), ANSI D (22 in x 34 in) |
| Min Media Size (Custom) | 8.25 in x 11 in |
| Max Media Size (Custom) | 24 in x 150 ft |
| Print Speed | Up to 0.5 min/page - A1 (23.4 in x 33.1 in) ¦ Up to 0.5 min/page - ANSI D (22 in x 34 in) |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Cutter | Yes |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n) |
| AirPrint Enabled | Yes |
| RAM Installed (Max) | 1 GB (1 GB) |
| Language Simulation | HP RTL, CALS G4, HP GL/2, URF, JPEG |
| Media Type | Bond paper, photographic paper, technical paper, self-adhesive paper |
| Networking | Print server |
| Printer Features | 4.1 kg max roll weight |
| Power | AC 100-240 V |
| Environmental Standards | EPEAT Gold |
| Manufacturer Warranty | 1-year warranty |
| Dimensions (WxDxH) | 39.9 in x 23.8 in x 36.7 in |
| General | |
| Printer Type | 24" large-format printer - ink-jet - color |
| Localization | English, French, Spanish, Portuguese / United States, Canada, Latin America |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 ¦ 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited hardware warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Stand, automatic sheet feeder, spindle, setup poster |
| Consumables Included | 1 x ink cartridge (cyan) ¦ 1 x ink cartridge (magenta) ¦ 1 x ink cartridge (yellow) ¦ 1 x ink cartridge (black) ¦ 1 x printhead |
| Compliant Standards | FCC Class B certified, ICES Class B, EMC Class B, RED, ACMA Class B, RSM Class B, CCC Class B, VCCI Class B, KCC Class B, EU RoHS, REACH, WEEE, ERP, UL ECOLOGO certified inks, EU Low Voltage Directive, EN 60950-1, EN 62368-1, EAC, Ukraine, PSB, CCC, IRAM, BIS, NYCE, TLS v1.2 |
| Printer | |
| Inkjet Technology | HP Thermal Inkjet |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
| Nozzle Configuration | 1376 nozzles |
| Minimum Ink Droplet Size | 12 pl (black), 5.5 pl (color) |
| Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, pigment black) |
| Print Speed | Up to 0.5 min/page - A1 (23.4 in x 33.1 in) ¦ Up to 0.5 min/page - ANSI D (22 in x 34 in) |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, Gigabit LAN, Wi-Fi(n) |
| AirPrint Enabled | Yes |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Language Simulation | HP RTL, CALS G4, HP GL/2, URF, JPEG |
| Cutter | Yes |
| Printer Features | 4.1 kg max roll weight |
| RAM | |
| RAM Installed (Max) | 1 GB / 1 GB (max) |
| Media Handling | |
| Media Type | Bond paper, photographic paper, technical paper, self-adhesive paper |
| Max Media Size | Roll A1 (24 in x 150 ft), A1 (23.4 in x 33.1 in), ANSI D (22 in x 34 in) |
| Min Media Size (Custom) | 8.25 in x 11 in |
| Max Media Size (Custom) | 24 in x 150 ft |
| Media Sizes | A4 (8.25 in x 11.7 in), A3 (11.7 in x 16.5 in), A2 (16.5 in x 23.4 in), A1 (23.4 in x 33.1 in), Letter A Size (8.5 in x 11 in), Ledger B Size (11 in x 17 in), ANSI C (17 in x 22 in), ANSI D (22 in x 34 in) |
| Media Thickness Range | Up to 0.012 in |
| Media Weight | 60 g/m² - 280 g/m² |
| Networking | |
| Networking | Print server |
| Security Protocols & Features | SNMP 1, SNMP 2, 802.1x |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 35 Watt |
| Power Consumption Stand by | 0.2 Watt |
| Power Consumption Sleep | 2.1 Watt |
| Software / System Requirements | |
| Software Included | HP Click |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% RH |
| Sound Emission (Idle) | 16 dBA |
| Sound Emission (Operating) | 42 dBA |
| Dimensions & Weight | |
| Width | 39.9 in |
| Depth | 23.8 in |
| Height | 36.7 in |
| Weight | 63.71 lbs |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 45.5 in |
| Depth (Shipping) | 22.6 in |
| Height (Shipping) | 18.7 in |
| Weight (Shipping) | 83.77 lbs |
| Environmental Standards | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR | Yes |
