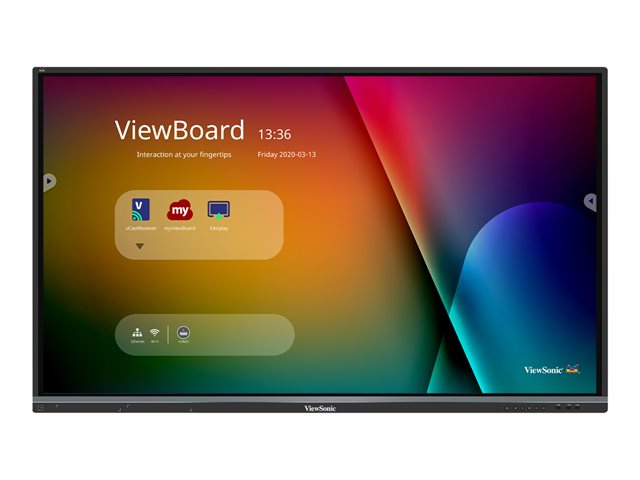

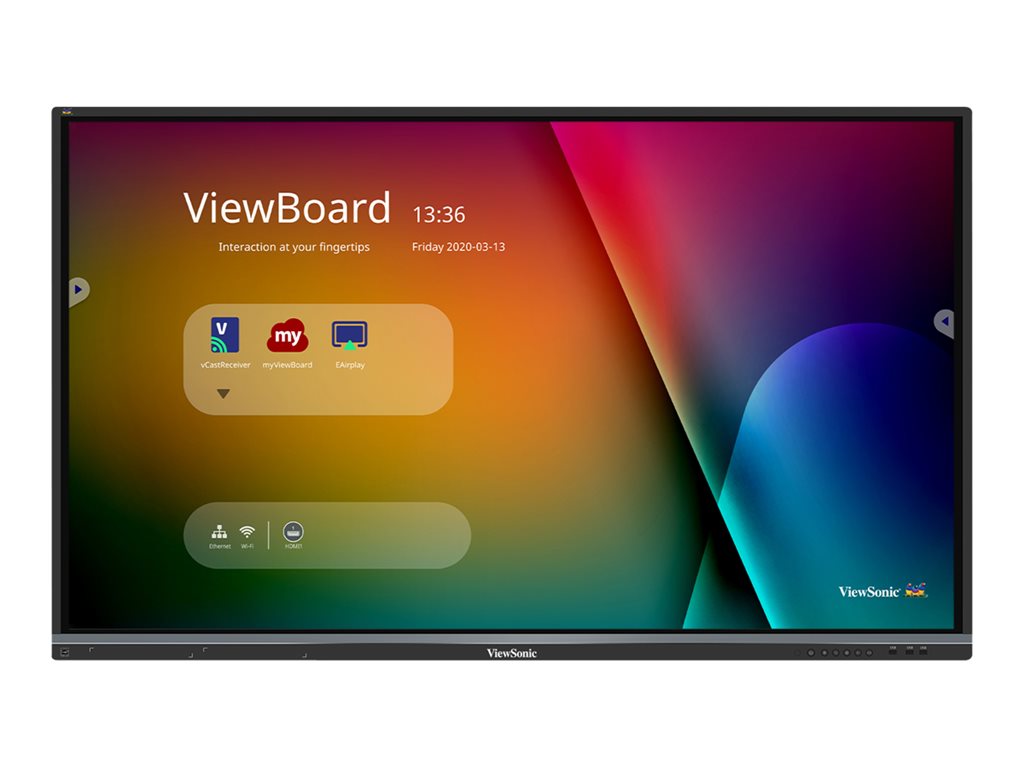

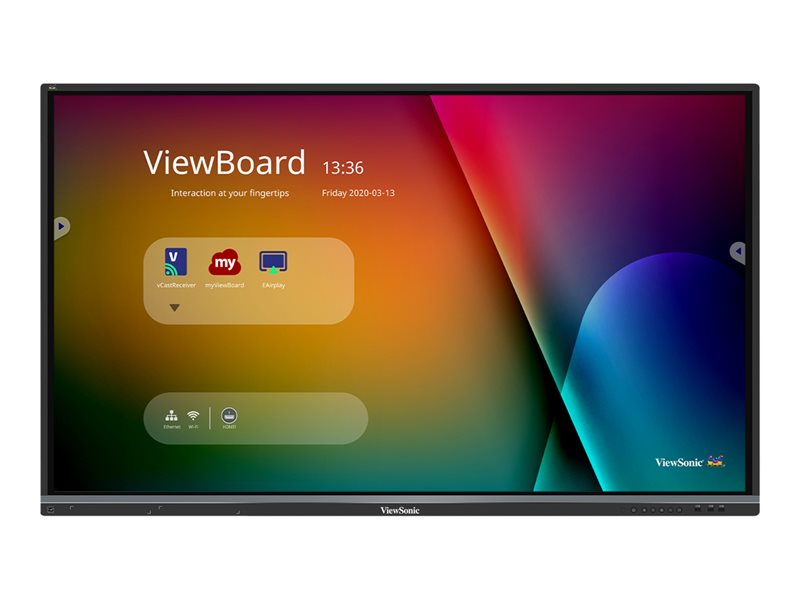

ViewSonic - ViewSonic ViewBoard IFP6550-E1

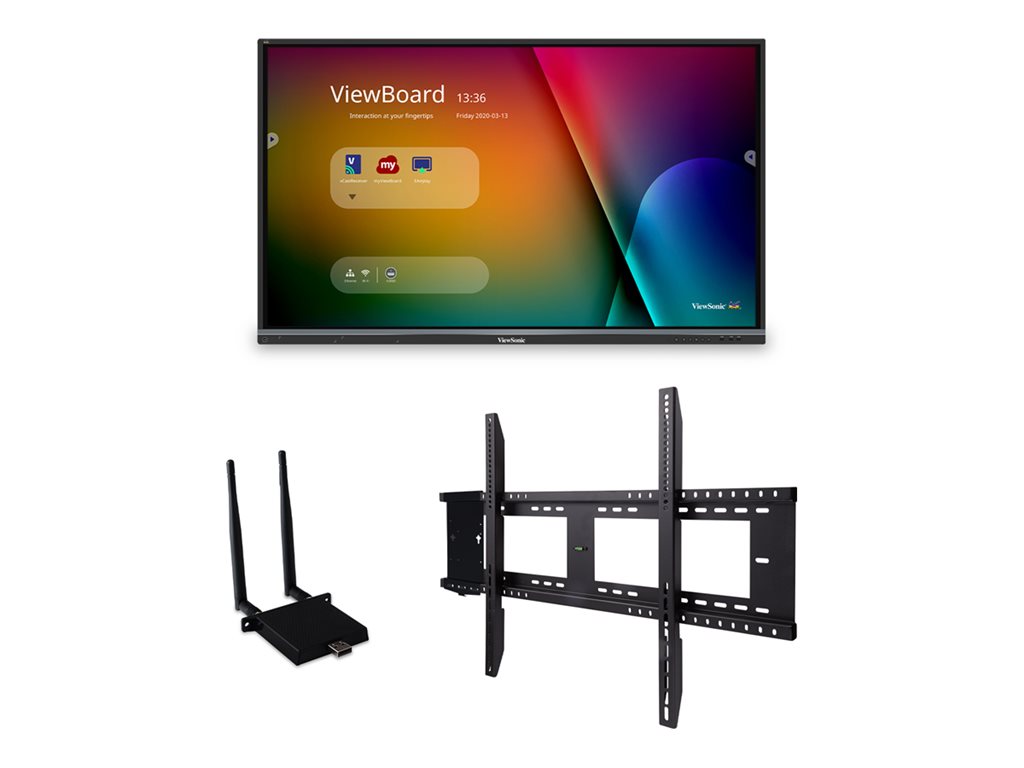

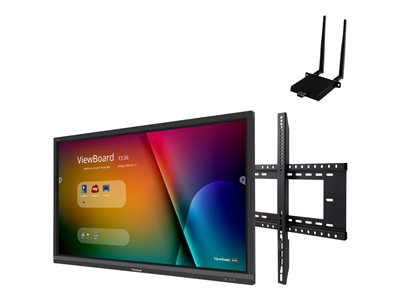

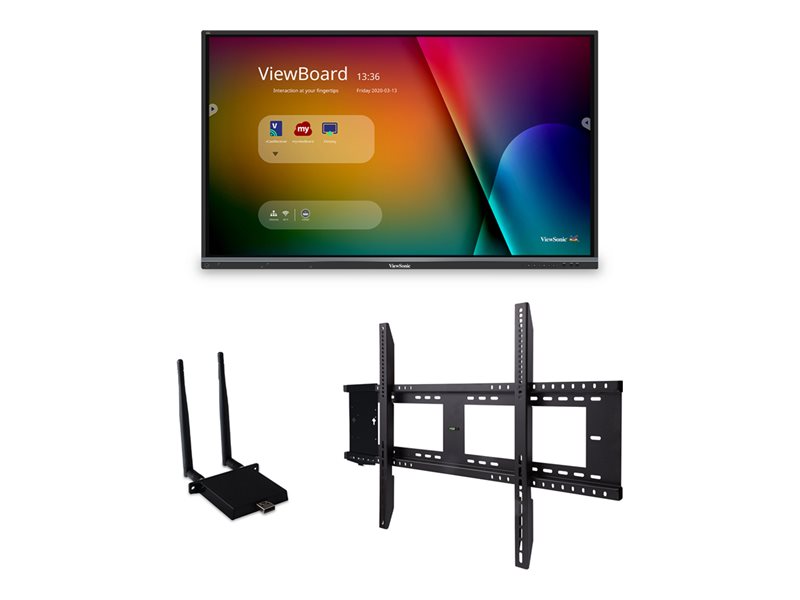

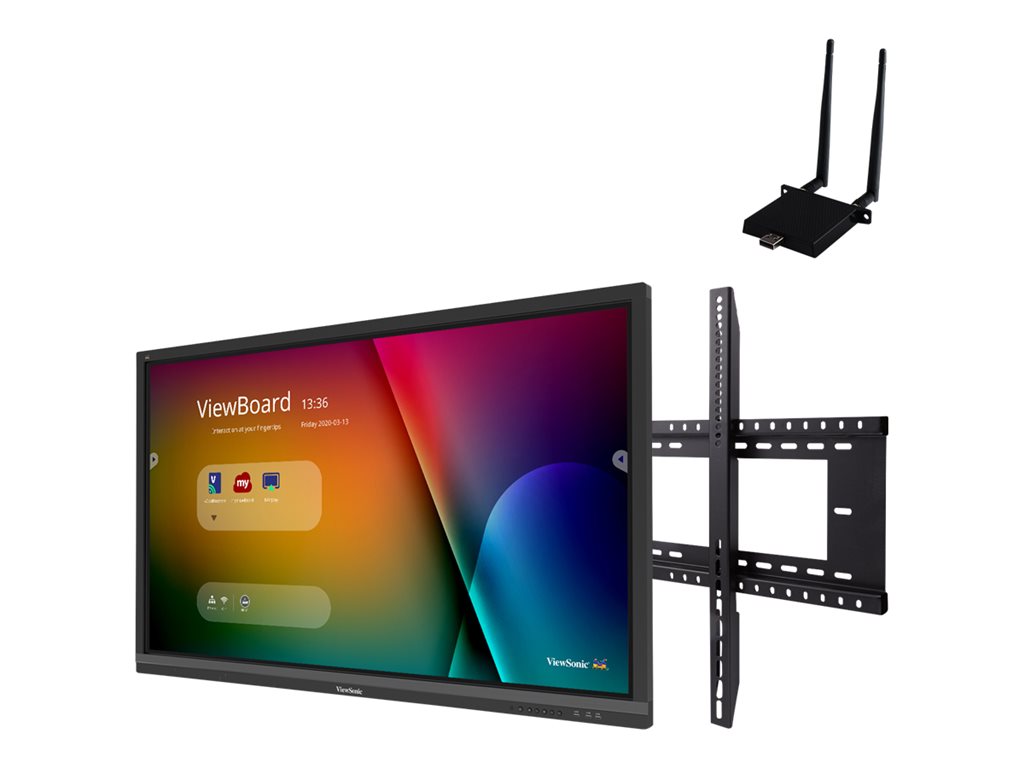

65" Diagonal Class IFP50 Series LED-backlit LCD display - interactive - with built-in media player and touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160 - with ViewSonic LB-WIFI-001 Adapter, ViewSonic WMK-047-2 wall mount

ViewSonic
IFP6550-E1
N/A
0766907002546
N/A
New

Price: $2,302.75

MSRP: $3,593.00
Total Available: 280

Product Description

Additional Details

What's Included

Specifications

Main Specifications

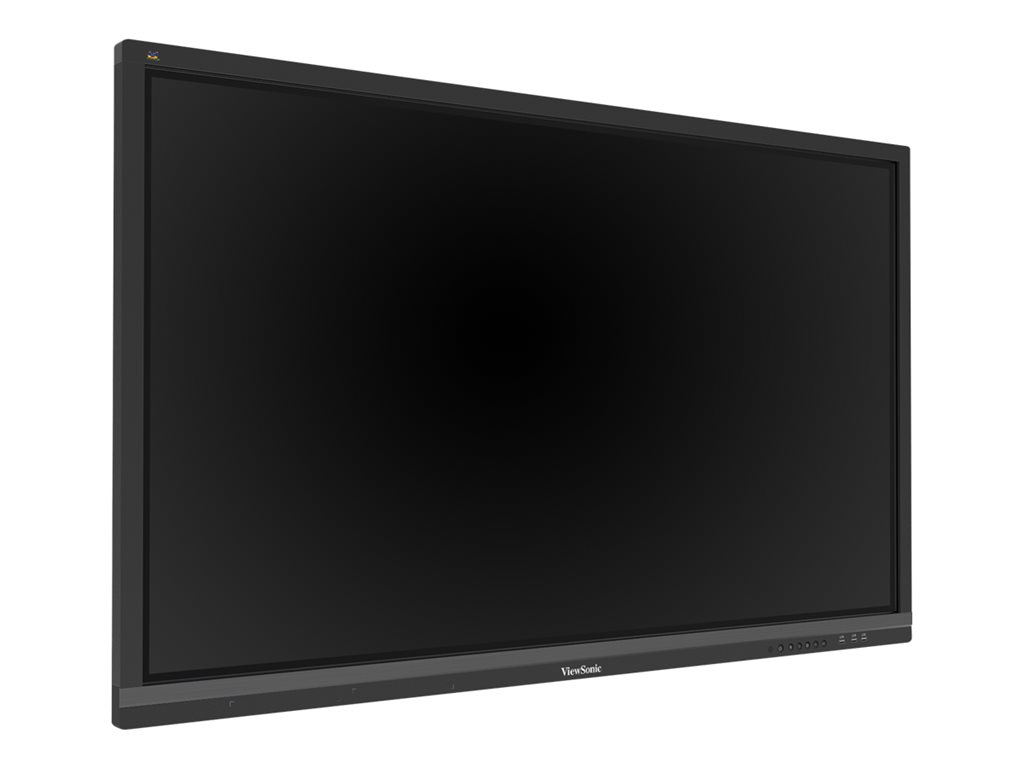

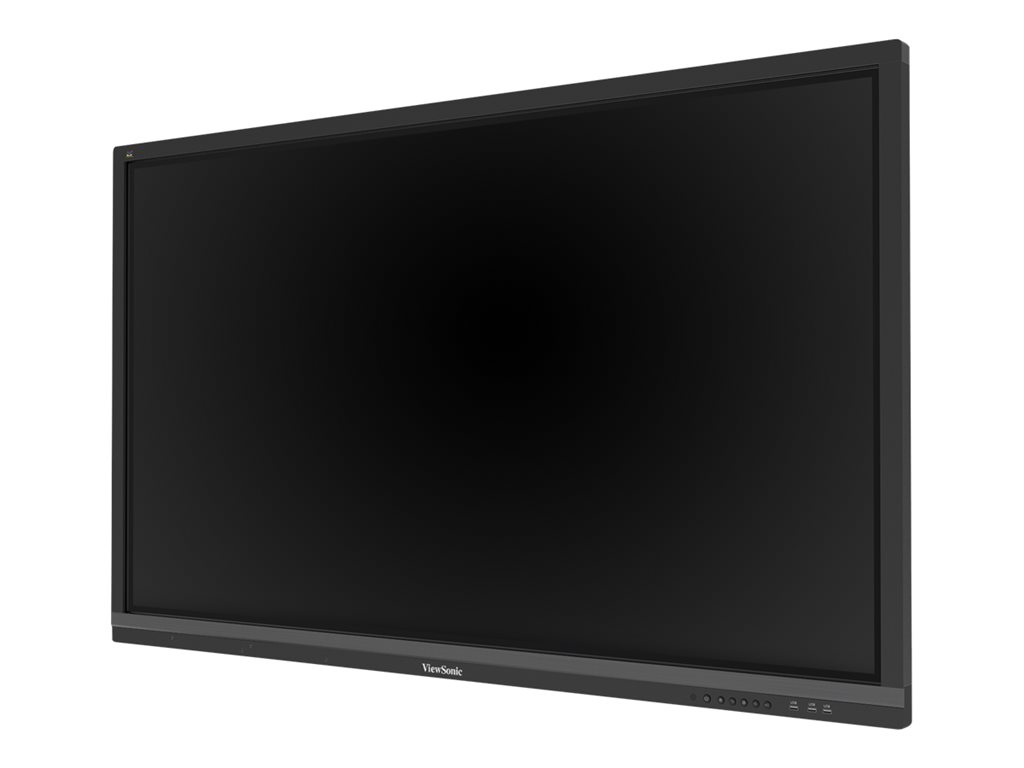

Product Description ViewSonic ViewBoard IFP6550-E1 IFP50 Series - 65" LED-backlit LCD display - 4K - for interactive communication
Product Type LED-backlit LCD flat panel display with built-in media player and touchscreen (multi touch)
Diagonal Class 65"
Commercial Use Yes - interactive

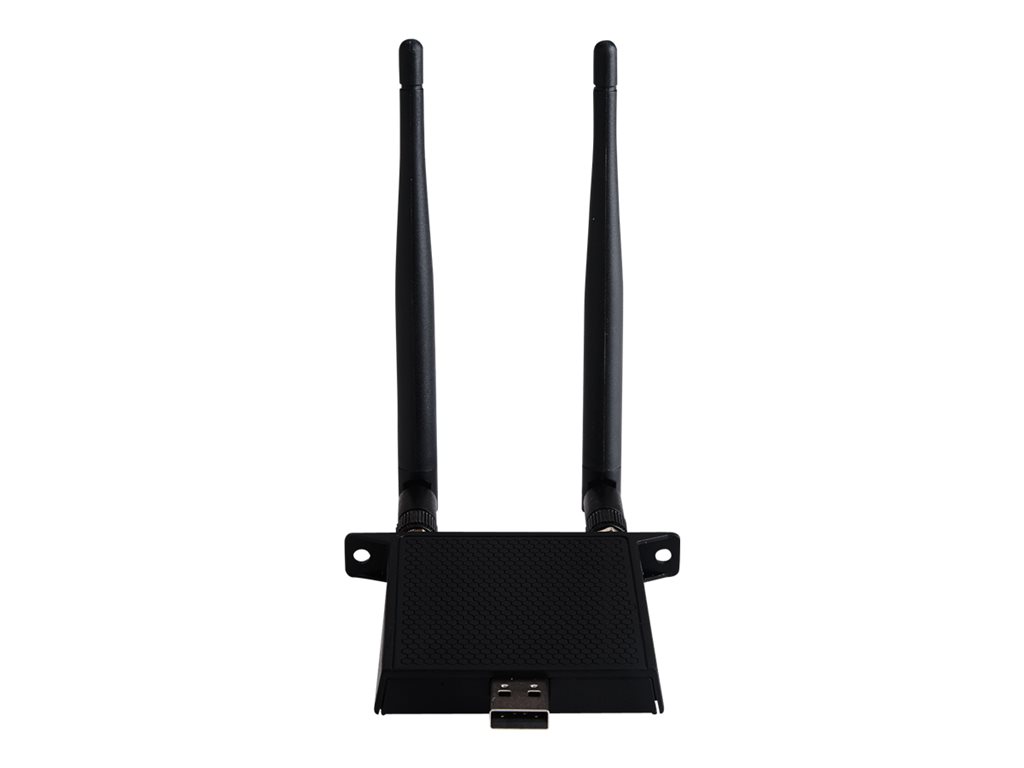

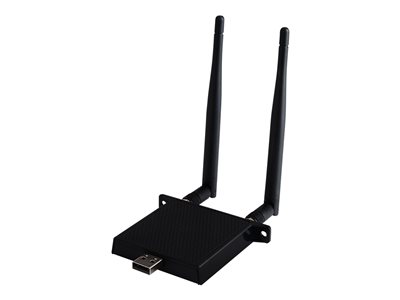

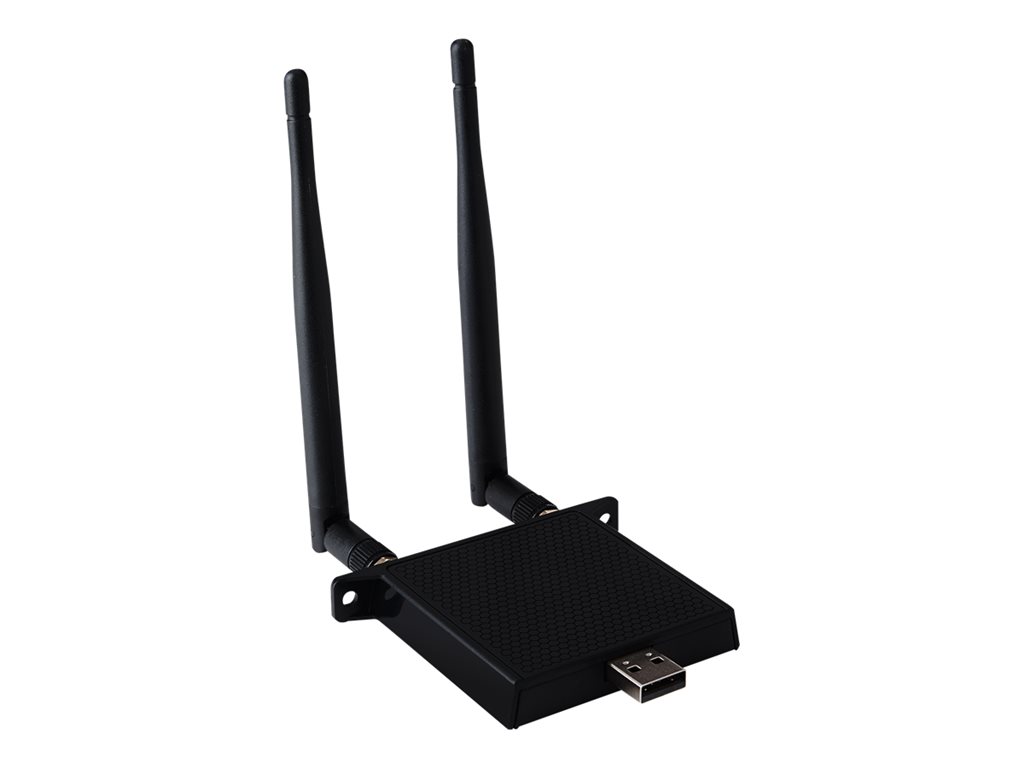

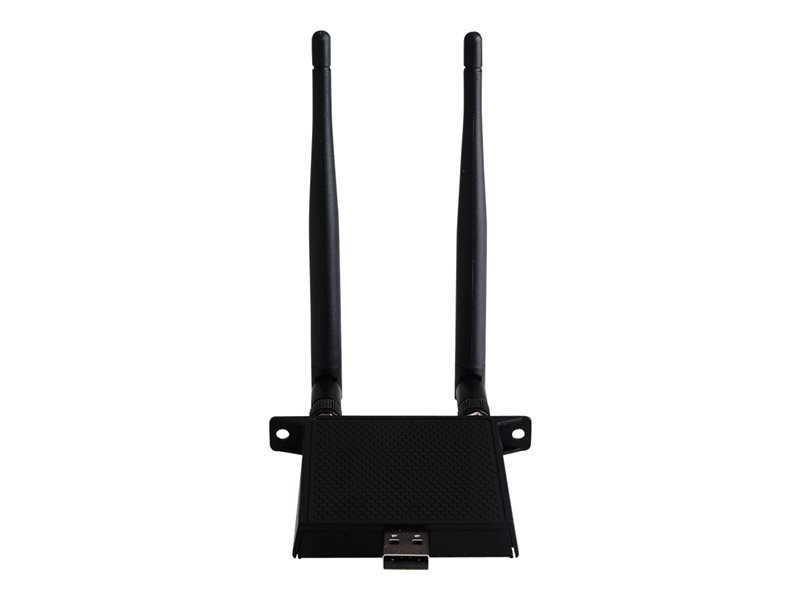

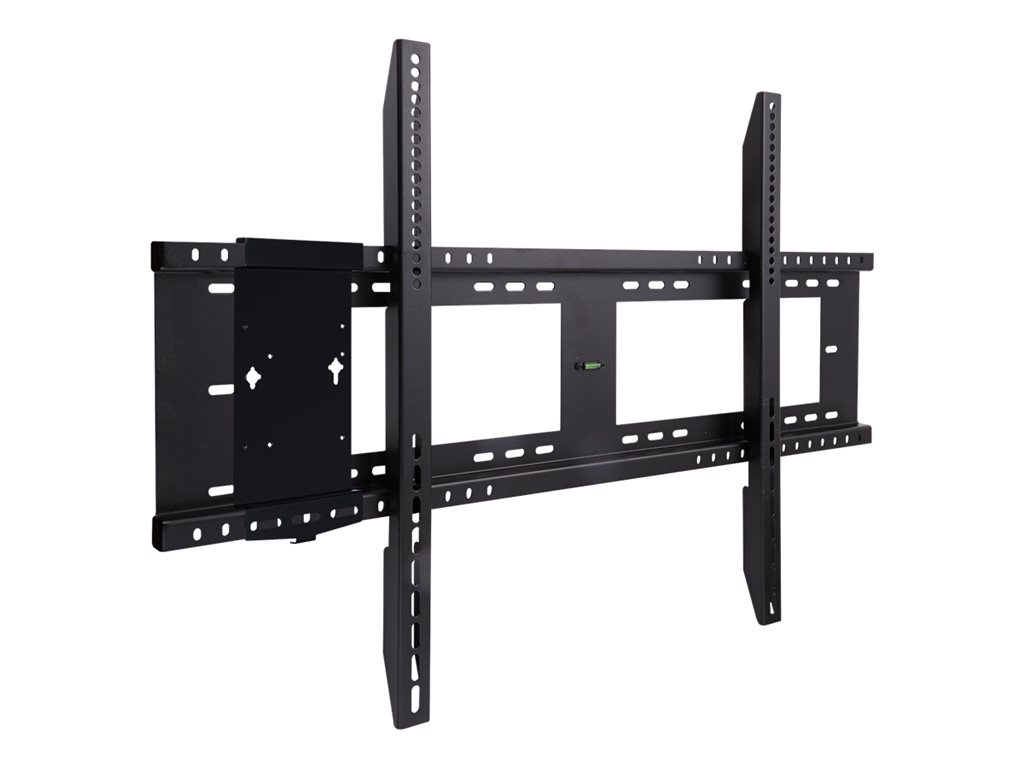

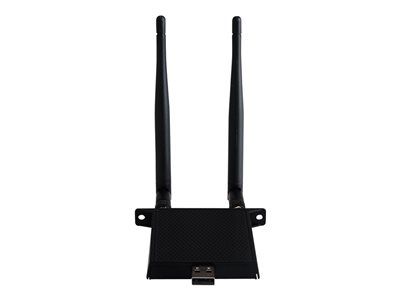

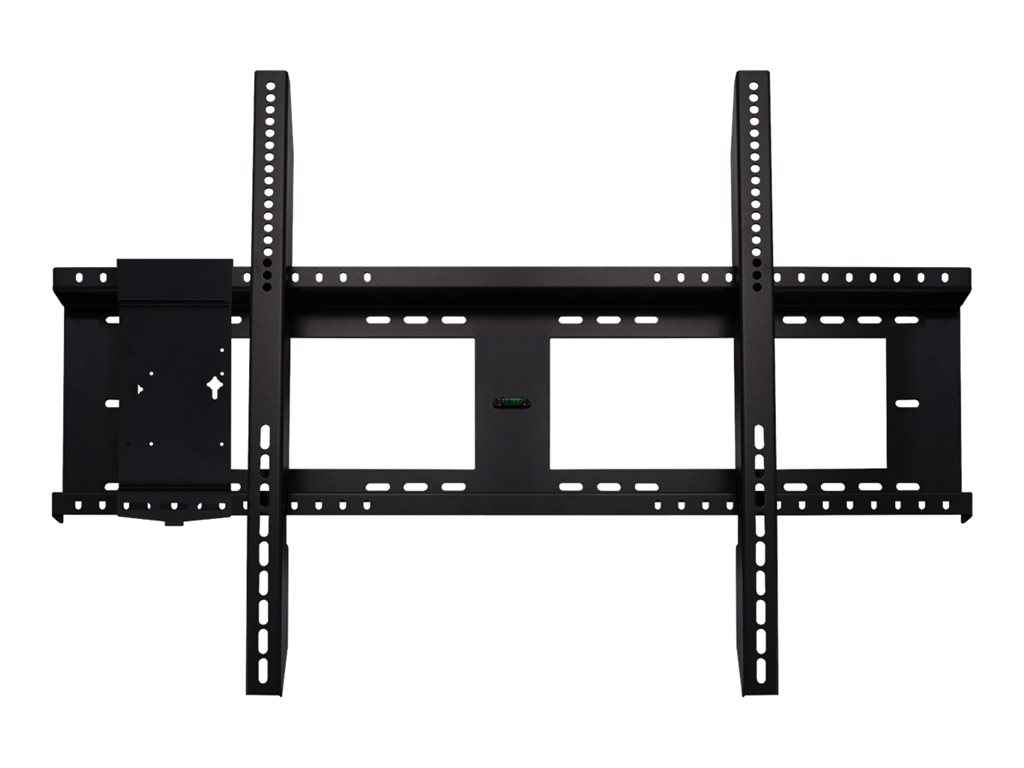

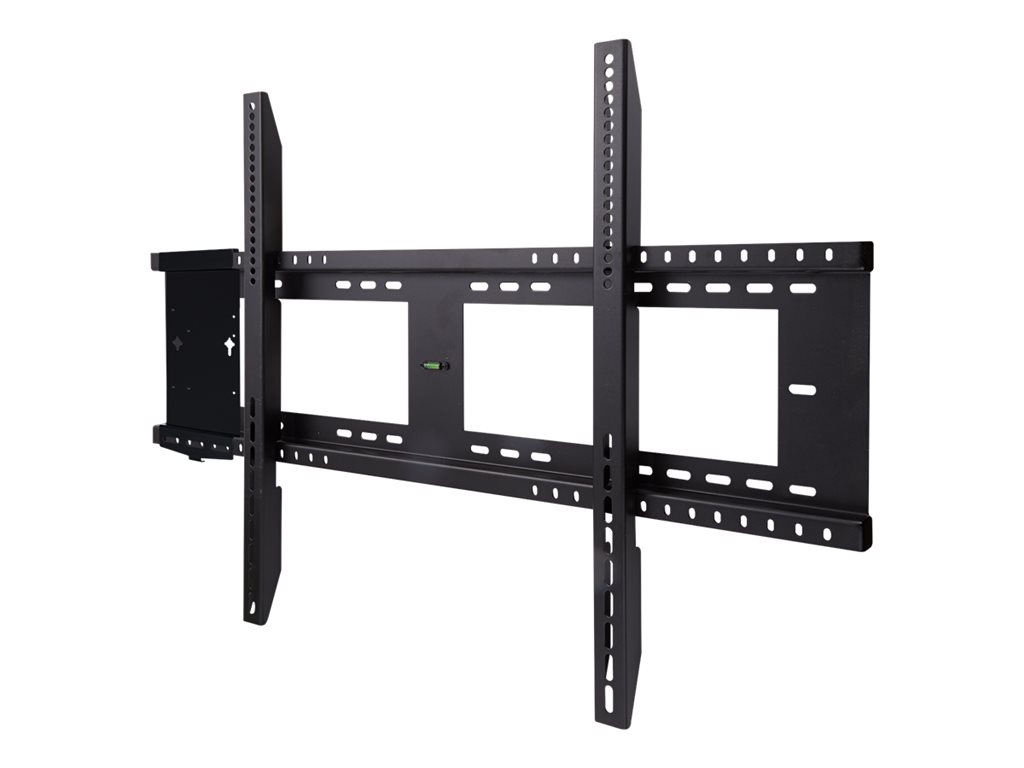

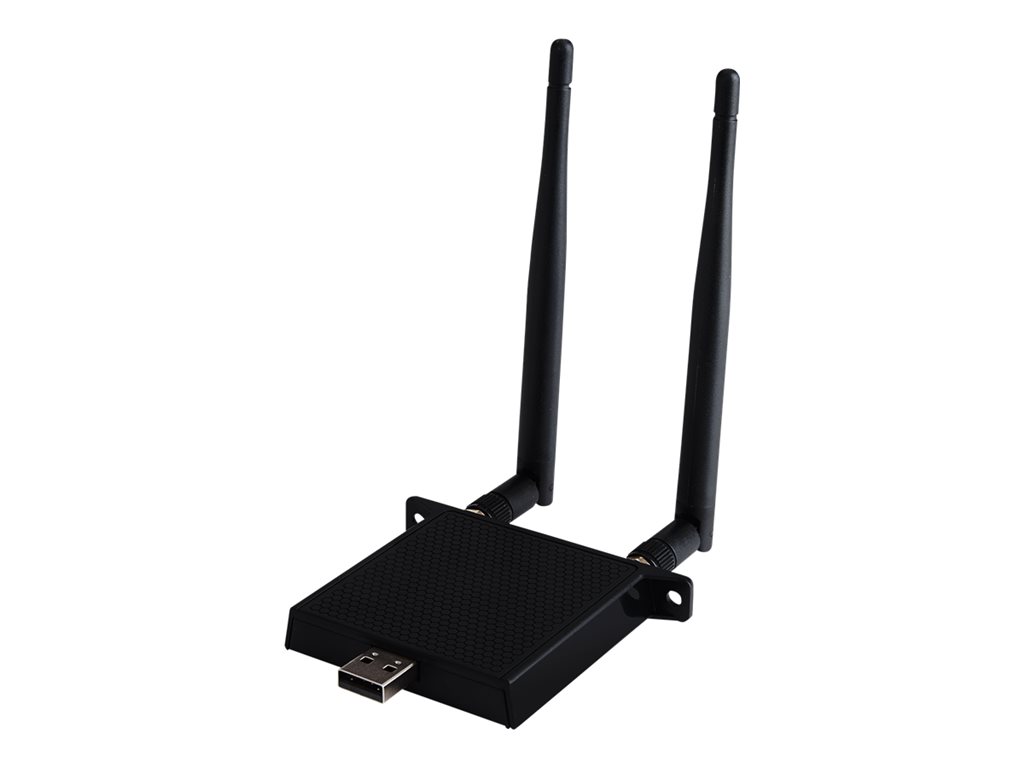

Bundled with ViewSonic LB-WIFI-001 Adapter, ViewSonic WMK-047-2 wall mount
Resolution 3840 x 2160
Display Format 4K UHD (2160p)
Frame Rate & Enhancement Technology 60 Hz Refresh Rate
Video Interface Composite, HDMI
HDMI Ports Qty 3 ports
Connectivity LAN
PC Interface DisplayPort
LCD Backlight Technology LED backlight
Image Aspect Ratio 16:9
TV Tuner No tuner
Speaker System 2 speakers, subwoofer
Storage Capacity 16 GB
USB 7 ports
Included Accessories Remote control, remote control, camera bracket, 2 pen styluses, batteries
Voltage AC 100-240 V (50 - 60 Hz)
Power Consumption Operational 104 Watt
Power Consumption Stand by 0.5 Watt
Dimensions (WxDxH) 58.6 in x 3.5 in x 35.3 in
Weight 117.73 lbs
Manufacturer Warranty 3-year warranty
General
Product Type LED-backlit LCD flat panel display
Power Consumption (Max) 350 Watt
Power Consumption Operational 104 Watt
Diagonal Class 65"
Commercial Use Yes - interactive
Bundled with ViewSonic LB-WIFI-001 Adapter, ViewSonic WMK-047-2 wall mount
Combined With Built-in media player and touchscreen (multi touch)
Series IFP50 Series
Operating System Android OS 8.0
TV Tuner No tuner
TV Tuner Presence No
Video Interface Composite, HDMI
HDMI Ports Qty 3 ports
PC Interface DisplayPort
Width 58.6 in
Depth 3.5 in
Height 35.3 in
Weight 117.73 lbs
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 3 years - on-site ¦ Limited warranty - backlight - 3 years - on-site
Miscellaneous
Included Accessories Remote control, camera bracket, 2 pen styluses, batteries
Cables Included USB cable ¦ HDMI cable
Power
Power Device Power supply
Input Voltage AC 100-240 V (50 - 60 Hz)
Power Consumption Stand by 0.5 Watt
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Display
Resolution 3840 x 2160
Display Format 4K UHD (2160p)
Image Aspect Ratio 16:9
Frame Rate & Enhancement Technology 60 Hz Refresh Rate
LCD Backlight Technology LED backlight
Coating 9H Hard
Image Contrast Ratio 1200:1
Dynamic Contrast Ratio 5000:1
Brightness 350 cd/m²
Viewing Angle 178°
Viewing Angle (Vertical) 178°
Touchpoints Qty 20
Response Time 8 ms
Backlight Life 50,000 hour(s)
Additional Features Infrared multitouch technology, Open Pluggable Specification slot, myViewBoard software, ViewBoard Cast software, USB SmartPort, 16/7 operation time
Connections
Connector Type 3 x HDMI input ¦ Audio input ¦ RS-232 ¦ Audio output ¦ SPDIF output ¦ Gigabit LAN ¦ 3 x USB 2.0 ¦ 4 x USB 3.0 ¦ Composite video input ¦ DisplayPort input
Remote Control
Type Remote control
Battery Included Yes
Audio System
Speaker System 2 speakers, subwoofer
Output Power / Total 35 Watt
Speakers 2 x main channel speaker - 10 Watt ¦ 1 x subwoofer - 15 Watt
Dimensions & Weight (Shipping)
Width (Shipping) 65.7 in
Depth (Shipping) 8.8 in
Height (Shipping) 39.8 in
Weight (Shipping) 147.93 lbs
Network & Internet Multimedia
Connectivity LAN
LAN Protocol Gigabit Ethernet
Stands & Mounts
Wall Mount Included Yes
Flat Panel Mount Interface 600 x 400 mm
VESA Compatibility Yes
Media Player
USB Port Yes
USB Ports Qty 7
Configuration ARM Cortex-A73 Dual-Core + ARM Cortex-A53 Dual-Core - 2 GB - 16 GB - Mali 450 MP4
