Vivitek - Vivitek DU4771Z
DLP projector - laser/phosphor - 3D - 6000 ANSI lumens - WUXGA (1920 x 1200) - 16:10 - 1080p - LAN
Vivitek
DU4771Z-WH
N/A
0813097024138
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Vivitek DU4771Z - DLP projector - 3D - LAN |
| Device Type | DLP projector - 1080p |
| 3D Capable | Yes (3D glasses sold separately) |
| Microdisplay | DMD Chip |
| Brightness | 6000 ANSI lumens |
| Contrast Ratio | 20000:1 |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Lens Shift Direction | Horizontal, vertical |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Video Input | (PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, NTSC 3.58, PAL-D, SECAM L, PAL-H, SECAM K1, SECAM D/K, SECAM B/G, M-NTSC), LAN |
| Video Modes | 480p, 720p, 1080i, 1080p, 480i, 576i, 576p |
| Speakers | Speaker(s) - integrated |
| Power | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 430 Watt |
| Dimensions (WxDxH) | 14.2 in x 17.8 in x 5.9 in |
| Weight | 23.59 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | DLP projector - 1080p |
| 3D Capable | Yes (3D glasses sold separately) |
| Networking | Ethernet |
| Expansion / Connectivity | |

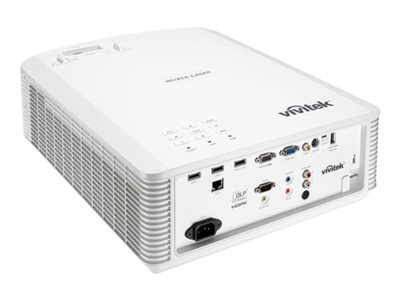

| Interfaces | 2 x HDBaseT - RJ-45 ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x Mobile High-Definition Link (MHL) / HDMI - 19 pin HDMI Type A ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x composite video / audio input - RCA x 3 ¦ 1 x microphone - mini-phone 3.5 mm ¦ 1 x audio line-in - mini-phone 3.5 mm ¦ 1 x audio line-out - mini-phone 3.5 mm ¦ 1 x network - RJ-45 ¦ 1 x 3D Sync out ¦ 1 x USB (power only) - 4 pin USB Type A (power only) ¦ 1 x USB - mini-USB Type B (management) ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years ¦ Limited warranty - light source - 5 years / 20000 hours |
| Miscellaneous | |
| Included Accessories | Remote control, battery for remote control |
| Cables Included | 1 x VGA cable |
| Power | |
| Power Source | AC |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 430 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Sound Emission | 36 dB |
| Sound Emission (Economic Mode) | 34 dB |
| Video Input | |
| TV System | PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, NTSC 3.58, PAL-D, SECAM L, PAL-H, SECAM K1, SECAM D/K, SECAM B/G, M-NTSC |
| Video Interfaces | VGA, HDMI, composite video, MHL, HDBaseT |
| Video Modes | 480p, 720p, 1080i, 1080p, 480i, 576i, 576p |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Dimensions & Weight | |
| Width | 14.2 in |
| Depth | 17.8 in |
| Height | 5.9 in |
| Weight | 23.59 lbs |
| Projector | |
| Microdisplay | DMD Chip |
| Brightness | 6000 ANSI lumens |
| Contrast Ratio | 20000:1 |
| Image Size | 37 in - 201 in |
| Projection Distance | 5 ft - 16.4 ft |
| Throw Ratio | 1.15 - 1.90:1 |
| Resolution | WUXGA - WUXGA (1920 x 1200) (native) / 1920 x 1200 (resized) |
| Native Aspect Ratio | 16:10 |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Features | DLP 3D Ready, DICOM Simulation Mode, Eco Mode |
| Lens | |
| Lens Aperture | F/2.45-3.13 |
| Zoom Factor | 1.65x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -30 / +30 |
| Horizontal Keystone Correction | -30 / +30 |
| Lens Shift Direction | Horizontal, vertical |
| Vertical Lens Shift | 12% |
| Horizontal Lens Shift | -2.5% / 2.5% |
| Speakers | |
| Type | Integrated |
| Sound Output Mode | Stereo |
| Output Power / Channel | 5 Watt |
| Speakers | 2 x right / left channel |
