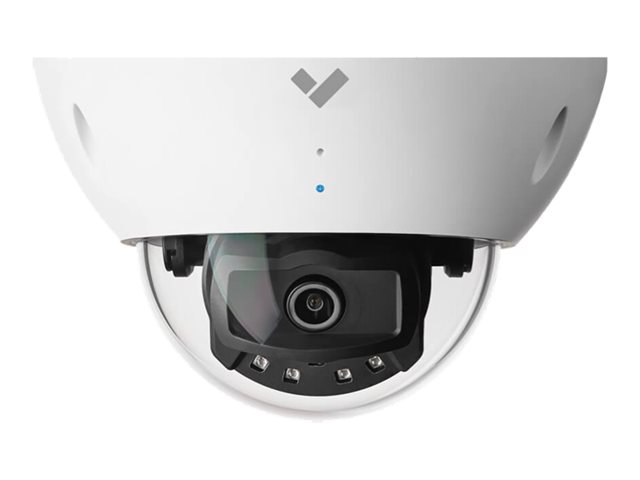

Verkada - Verkada CD42-E
Network surveillance camera - dome - outdoor - vandal-proof - color (Day&Night) - 5 MP - 2688 x 1944 - fixed iris - fixed focal - LAN 10/100 - PoE Plus - with 30 days onboard storage (256GB)
Verkada
CD42-256E-HW
N/A
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Verkada CD42-E - network surveillance camera - dome - with 30 days onboard storage (256GB) |
| Device Type | Network surveillance camera - fixed - dome - outdoor - vandal-proof |
| Bundled with | 30 days onboard storage (256GB) |
| Camera Mount Type | Pole mount |
| Dimensions (WxDxH) | 6.1 in x 6.1 in x 4.2 in |
| Weight | 28.85 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2688 x 1944 |
| Motion Detection | Yes |
| Optical Sensor Type | PS CMOS - 1/2.8" - 5 MP |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 - fixed iris |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Plus |
| Features | Progressive scanning, Wide Dynamic Range (WDR), Face Recognition, infrared cut filter, auto tracking, cloud recording, people counting, Heat Map, Vehicle Detection, firmware upgradable, Person Detection, human and vehicle filtering, adaptive quality recording |
| Manufacturer Warranty | 10-year warranty |
| Environmental Parameters (operating) | -4 °F - 122 °F; 90% relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Camera Mount Type | Pole mount |
| Connectivity Technology | Wired |
| Width | 6.1 in |
| Depth | 6.1 in |
| Height | 4.2 in |
| Weight | 28.85 oz |
| Bundled with | 30 days onboard storage (256GB) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | Desiccant bag, alignment sticker, screw pack, waterproof connectors, conduit adapter, pole mount |
| Compliant Standards | FCC, IEC 60950-1, ICES, IP67, IK10, IEEE 802.3af, IEEE 802.3at, UKCA |
| Power | |
| Power Requirements | PoE Plus |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 90% |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal-proof |
| Max Digital Video Resolution | 2688 x 1944 |
| Motion Detection | Yes |
| Infrared LEDs | Yes |
| Infrared Distance | 49 ft |
| Digital Video Capture Resolution | 2688 x 1944 |
| Features | Progressive scanning, Wide Dynamic Range (WDR), Face Recognition, infrared cut filter, auto tracking, cloud recording, people counting, Heat Map, Vehicle Detection, firmware upgradable, Person Detection, human and vehicle filtering, adaptive quality recording |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.6 fixed iris |
| Horizontal Field of View (degree) | 97 |
| Vertical Field of View (degree) | 71 |
| Diagonal Field of View (degree) | 128 |
| Image Sensor | |
| Type | 5 MP PS CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
